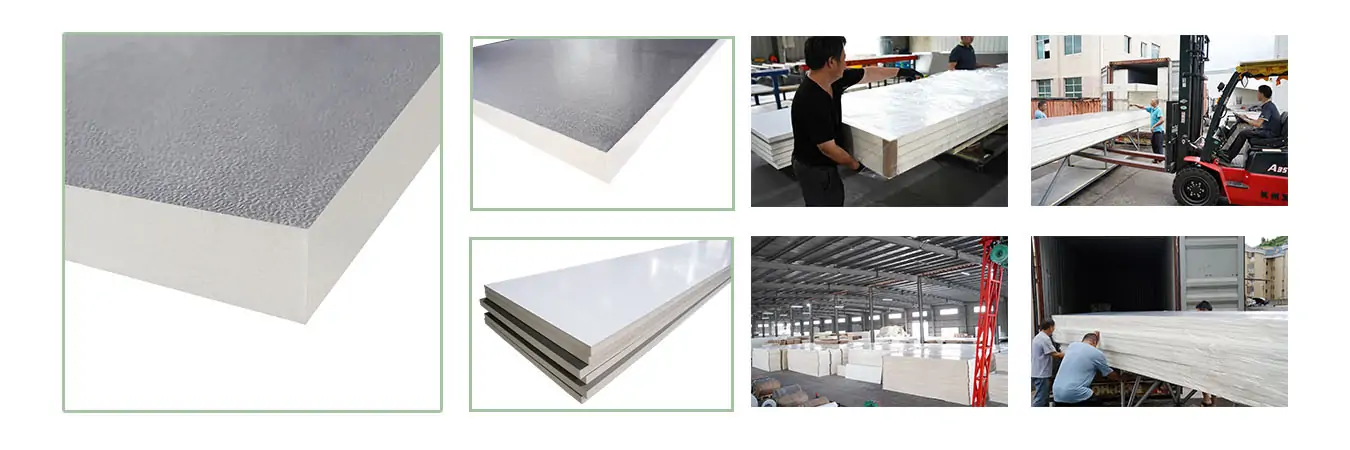

70mm PIR Rigid Insulation Board with Aluminum Foil

Độ dày: 50mm (optional 10-80mm)

Vật liệu đối mặt: Khăn giấy sợi thủy tinh 600micron

Tỉ trọng : 30-50kg/m3

Kích cỡ : Chiều rộng 1,2 m / 0,6m, chiều dài có thể tùy chỉnh

Thermal Resistance Rigid Insulation Board 70mm PIR

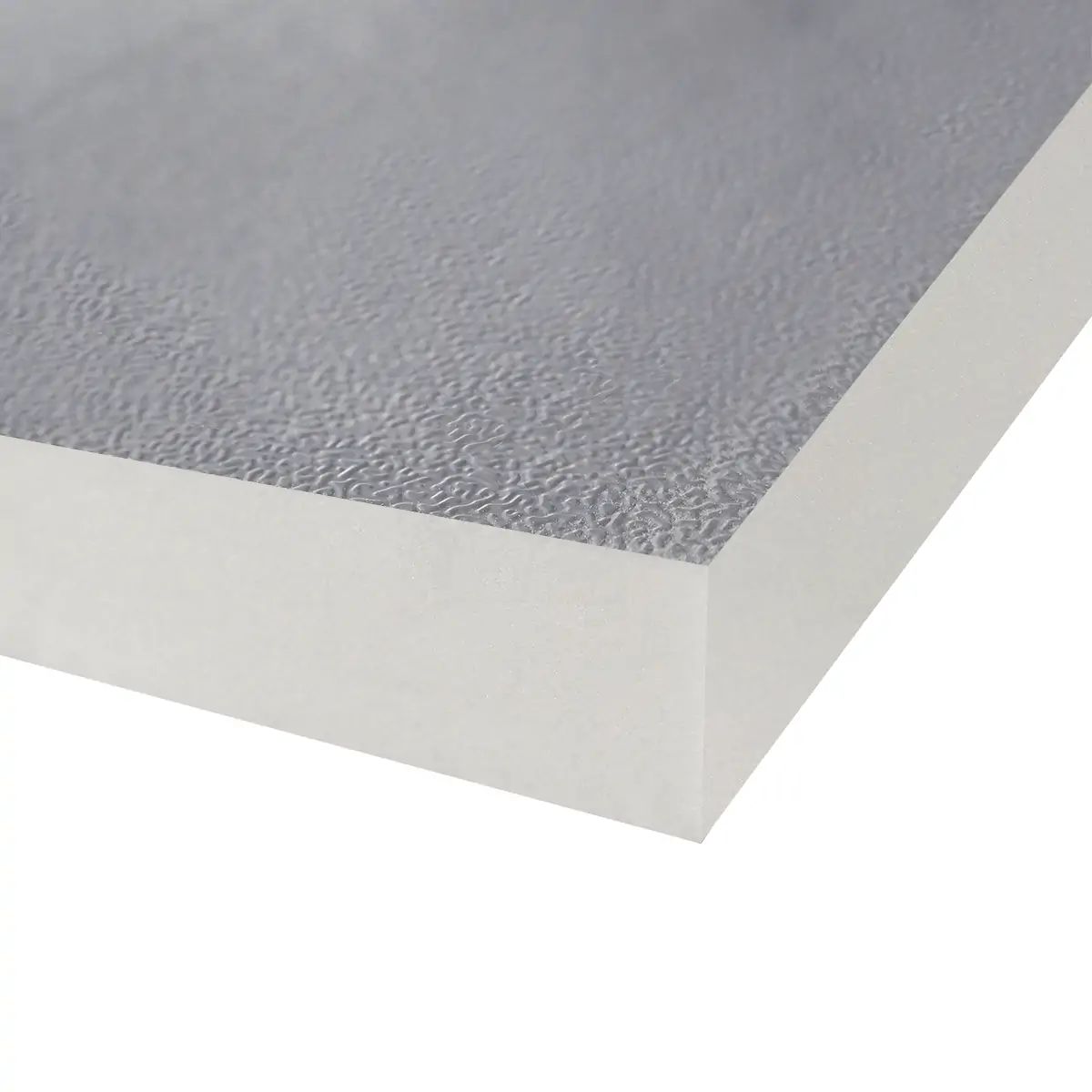

The Aluminum Foil 70mm PIR Insulation Bords is a top-tier rigid thermal insulation board, constructed with a high-density PIR(PIR – short for polyisocyanurate) foam core and laminated on both sides with reflective 0.08mm aluminum foil. This PIR thermal insulation board insulation board offers exceptional thermal resistance, dimensional stability, and moisture protection—making it an ideal solution for building envelope systems, and energy-efficient wall and roof assemblies.

Why PIR Rigid Foam Board Insulation Is the Smarter Option

This 70mm PIR insulation rigid board combines structural integrity with superior energy efficiency. With thermal conductivity as low as 0.02 W/m·K, the PIR rigid insulation board significantly reduces heat gain and loss, supporting thermal regulation in all climates.

Its aluminum foil facings enhance thermal reflectivity, block moisture ingress, and provide added fire performance. This product is widely used in green building designs where high R-value and reduced material thickness are required for optimal energy savings and space efficiency.

Bảng dữ liệu kỹ thuật

Tài sản	Tiêu chuẩn	Sự chỉ rõ
Chiều rộng tiêu chuẩn		600/1200mm
độ dày		50mm
Mật độ bọt	ASTM D1622/D1622M-14	30-50kg/m³
CFC và HCFC	Khoảng trống GC/MS	Miễn phí
Dẫn nhiệt	ASTM C518-17	<=0,024W/mK
Xếp hạng lửa	BS 476 Phần 6&7	Lớp 0
Cường độ nén	ASTM D1621-16	>=0,15Mpa
Độ bền kéo	DB34/T 3826-2021	>=0,15Mpa
Hấp thụ nước theo thể tích	ASTM C209-15	<3%
Ổn định kích thước		70oC 48h<=1,5% -30oC 48h<=1,0%
Nhiệt độ dịch vụ	DB34/T 3826-2021	-30oC – 120oC

Why Choose GFI PIR Rigid Insulation Board?

01 / Superior Thermal Performance: This PIR thermal insulation board delivers high thermal insulation performance. At 70mm PIR insulation boards, it fits seamlessly into roofs, walls, and floor assemblies—reducing energy loss without compromising interior space.

02 / Reinforced Aluminum Foil Facing: Aluminum foil facings enhance heat reflectivity and fire resistance, while adding durability during handling and installation. Ideal for use in demanding construction environments where performance and safety are critical.

03 / Excellent Moisture Barrier: With closed-cell PIR foam structure, this rigid thermal insulation board offers outstanding moisture resistance and long-term dimensional stability. The foil acts as an integrated vapor barrier, perfect for use in high-humidity zones.

04 / Sustainable & Fire-Rated: Free from CFCs and HCFCs, the PIR rigid insulation board meets environmental requirements and supports sustainable building practices. It complies with Class 0 fire standards under BS 476, limiting flame spread and smoke for enhanced building safety.

Typical Applications of 70mm PIR Rigid Thermal Insulation Boards

1. Wall Insulation Systems

Hệ thống composite cách nhiệt bên ngoài (ETICS): Our PIR rigid insulation boards are commonly used as the main thermal layer in external insulation systems. Installed under cladding, render, or ventilated façades, they reduce heat transfer and enhance building energy performance.
Internal Wall Insulation: PIR rigid foam insulation boards are also ideal for interior retrofits. They offer high thermal resistance while maintaining minimal thickness, making them perfect for improving older buildings without altering the exterior.

2. Roof Insulation (Flat & Pitched)

Flat Roof Insulation: Applied directly above roof decks, these rigid thermal insulation boards form a continuous layer, limiting heat loss and withstanding long-term compression.
Pitched Roof Insulation: Whether between or over rafters, our 70 mm PIR insulation rigid boards are easy to install and provide high R-value thermal protection for sloped roofing structures.

3. Floor Insulation Applications

Underfloor Heating Systems: The 70mm PIR insulation board delivers excellent downward heat resistance in radiant floor heating systems, helping optimize heat distribution and reduce energy waste.
General Floor Insulation: Suitable for suspended timber floors and slab-on-grade construction, these boards improve thermal comfort while supporting load-bearing needs.

4. Curtain Wall Insulation

PU and PIR rigid insulation boards can be integrated into modern glass curtain wall systems to boost thermal efficiency. Installed as part of the cavity structure, they reduce overall U-values without compromising design aesthetics.

Is PIR Insulation Flammable?

The following pictures show the state of the RLB-l PIR Insulation fireproof composite board under the direct combustion of the 1300℃ flame torch for each period of time. During the entire experiment, the RLB-I PIR Insulation Board did not burn through and did not drip water. Preventing flame spread and heat conduction, no burning phenomenon.

Ready to Boost Your Building’s Thermal Performance?

Upgrade your building with our high-efficiency PIR thermal insulation board. Available in standard 70mm PIR insulation and custom 10-80 thickness options.
