How Pre-painted GI Sheet Duct Panel Improves Outdoor HVAC Systems?

In modern HVAC duct systems, pre-insulated duct panels—especially pre-painted GI duct panels—are increasingly widely used. This is particularly true in large commercial buildings, industrial facilities, and rooftop HVAC systems, where ductwork must not only provide excellent thermal insulation performance but also offer enhanced weather resistance, structural strength, and long-term stability. As a result, pre-insulated duct panels with a Pre-painted GI Sheet (color-coated galvanized steel) facing are becoming an increasingly preferred choice for outdoor HVAC projects.

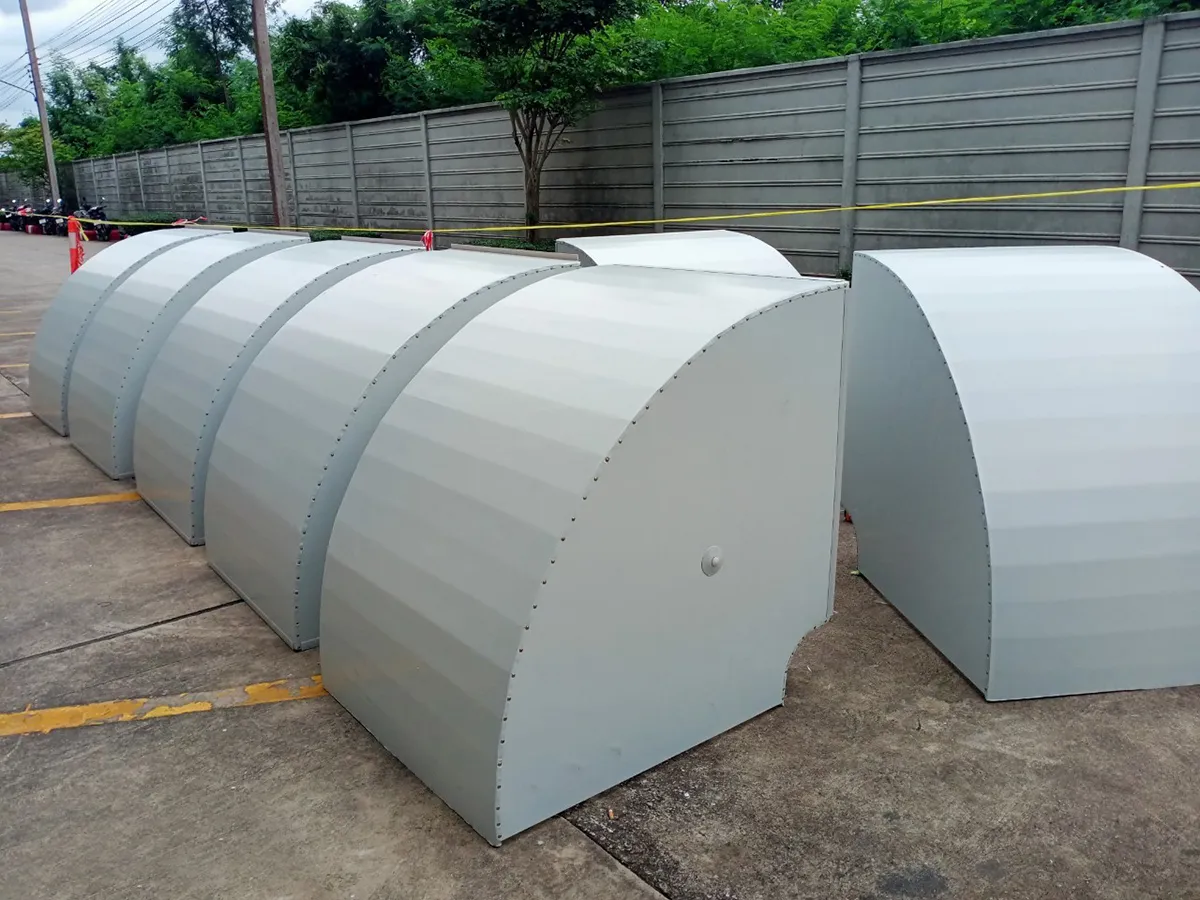

What is a Pre-painted GI Sheet Duct Panel?

A Pre-painted GI Sheet Duct Panel is an HVAC duct material made by laminating PIR or phenolic foam insulation core with color-coated galvanized steel sheets.

Its structure typically includes:

• Outer layer: Pre-painted GI Sheet (color-coated galvanized steel)
• Inner layer: Aluminum foil facing
• Insulation core: PIR or phenolic foam

This structure not only provides excellent thermal insulation performance but also significantly enhances the mechanical strength and outdoor adaptability of the duct system.

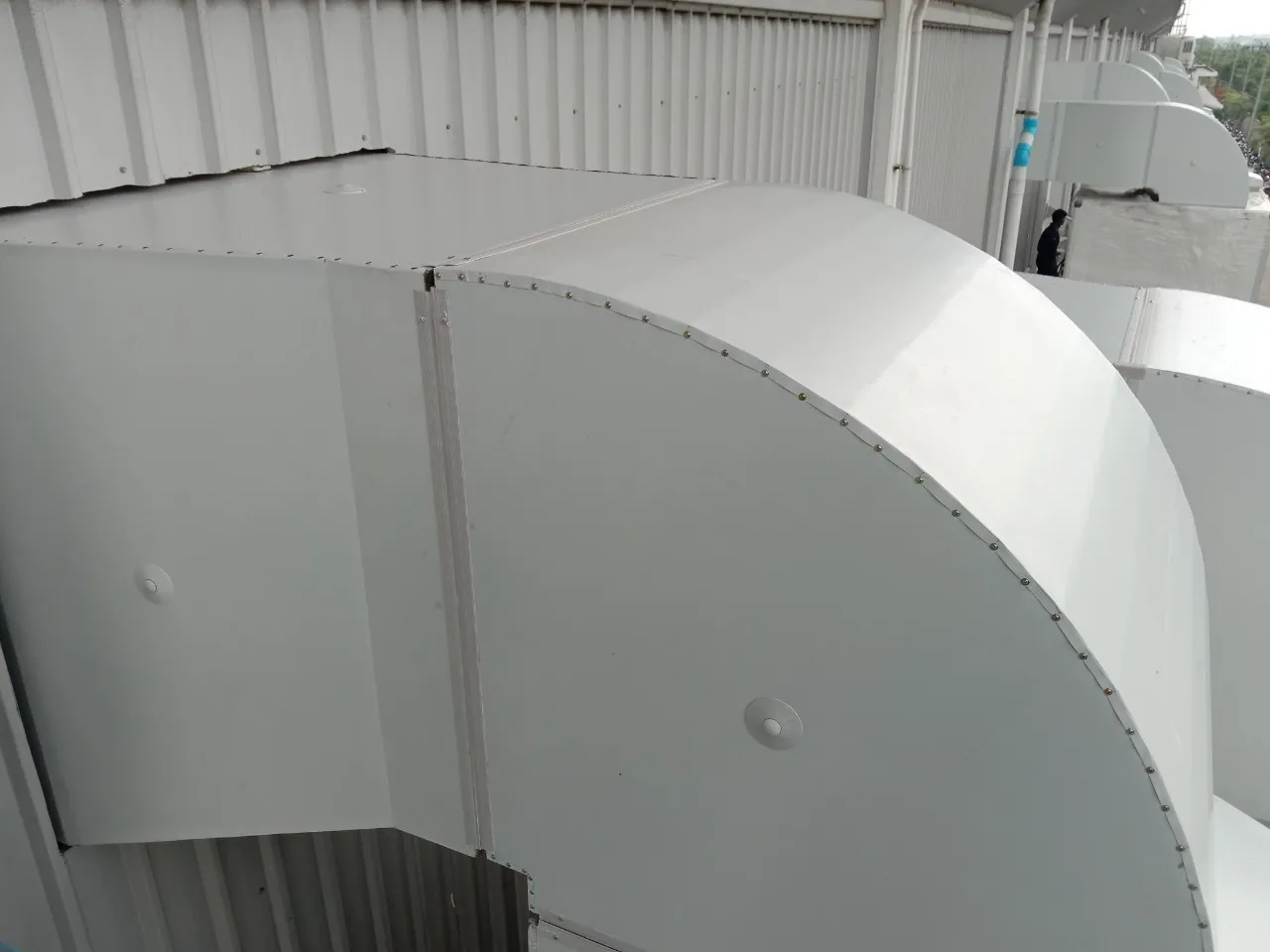

1. Improved Weather Resistance for Outdoor HVAC Ducts

Outdoor HVAC ducts are continuously exposed to sunlight, UV radiation, rain, high humidity, temperature fluctuations, wind, and dust. Therefore, higher requirements are placed on weather resistance and corrosion resistance.

Compared with conventional aluminum foil facings, Pre-painted GI Sheet offers stronger:

• Corrosion resistance
• Anti-oxidation performance
• UV resistance
• Surface durability

This effectively extends the service life of outdoor duct systems.

2. Enhanced Structural Strength of Duct Systems

Pre-painted GI Sheet facing helps:

• Better resistance to negative pressure and large-span duct deformation
• Reduce deformation risk
• Increase impact resistance
• Enhance long-term structural stability

This is particularly beneficial in large-scale industrial ventilation systems and long-span duct installations, where higher structural performance improves overall system reliability.

3. Better Suitability for Industrial and High-Humidity Environments

In industrial facilities, warehouses, and coastal high-humidity environments, HVAC duct systems are exposed to high moisture levels, salt mist, dust, and mildly corrosive gases, which place higher demands on material durability.

The Pre-painted GI Sheet surface provides a stable protective coating that effectively blocks moisture and corrosive agents from reaching the metal substrate, reducing the risk of corrosion. Compared with traditional aluminum foil facings, it also offers improved long-term surface stability, helping maintain structural integrity and operational reliability over time.

4. Maintains Excellent Thermal Insulation Performance

Although the outer layer uses GI steel sheet facing, the system still relies on high-performance insulation core materials.

PIR and phenolic foam provide:

• Reduced cooling energy loss
• Improved HVAC energy efficiency
• Lower condensation risk
• Enhanced overall energy performance

As a result, pre-insulated duct systems with color-coated steel facings achieve a balance of:

• Structural strength
• Thermal insulation performance
• Energy efficiency

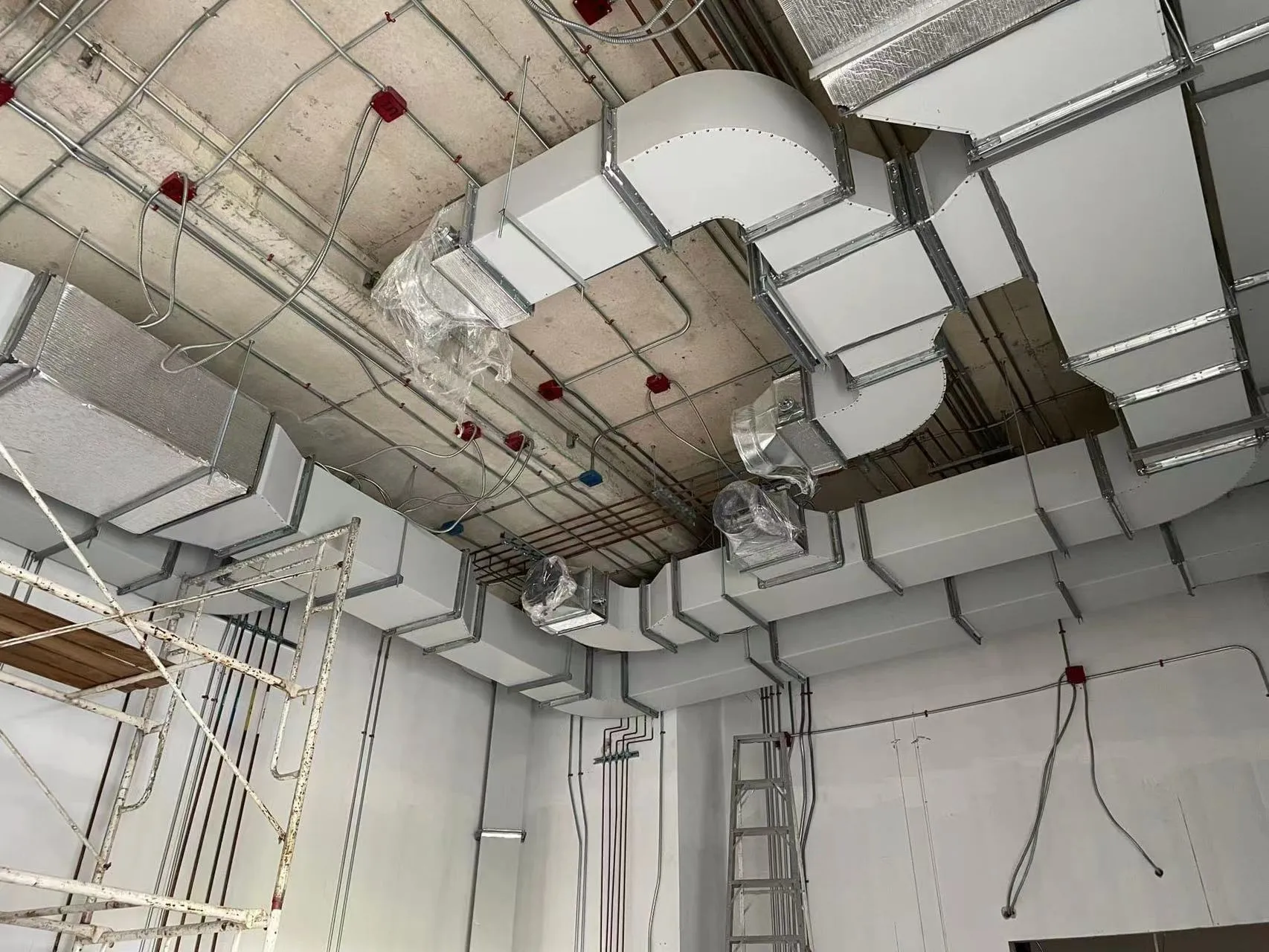

5. Improved Aesthetic Appearance of HVAC Systems

As modern buildings increasingly emphasize the visual quality of MEP systems, some HVAC ducts are directly exposed in visible areas.

Compared with conventional metal ductwork, Pre-painted GI Sheet provides:

• Cleaner surface finish
• More modern industrial appearance
• Better color consistency
• Higher-end visual integration

Therefore, it is increasingly used in:

• Commercial complexes
• Exhibition centers
• Airports
• High-end industrial buildings

6. Reduced Long-Term Maintenance Costs

Outdoor HVAC systems typically face higher maintenance requirements.

Pre-painted GI Sheet duct panels help:

• Reduce surface corrosion issues
• Lower maintenance frequency
• Extend system service life
• Reduce long-term operating costs

For large commercial and industrial HVAC projects, these long-term economic advantages are particularly significant.

7. Reliable Outdoor HVAC Duct Systems Need Strong Manufacturing

As a manufacturer specializing in HVAC pre-insulated duct systems, GFI Duct has long been supplying Pre-painted GI Sheet PIR/Phenolic pre-insulated duct panels and related HVAC accessories. These products are widely used in commercial buildings, industrial plants, warehousing and logistics facilities, as well as rooftop HVAC systems.

GFI is equipped with large-scale pre-insulated duct panel production lines and professional processing equipment, capable of meeting the requirements of duct systems in various specifications and application scenarios. At the same time, the company has a professional R&D team and cooperates with universities on technical development, continuously improving the structural strength, weather resistance, corrosion resistance, and long-term stability of pre-painted GI sheet duct panels.

With extensive international project experience and stable manufacturing capabilities, GFI continues to provide global customers with more energy-efficient, durable, and reliable HVAC duct solutions suitable for complex environments.

Conclusion

Pre-painted GI Sheet pre-insulated duct panels significantly improve the weather resistance, structural strength, and long-term stability of outdoor HVAC systems

while also maintaining thermal insulation efficiency and aesthetic performance.

As modern HVAC engineering continues to demand higher standards for energy efficiency, durability, and high-performance duct systems, color-coated steel faced pre-insulated duct panels are becoming an increasingly important solution for outdoor HVAC applications.
