PIR Duct vs. Fiberglass Duct: Which Is Better?

What is PIR Duct?

In modern HVAC systems, duct performance directly affects air quality, energy consumption, and long-term maintenance costs. While traditional fiberglass ductwork remains in use, PIR Duct—a type of Rigid Foam Ductwork with built-in thermal and structural advantages—is rapidly becoming the preferred choice for central air systems in both commercial and residential buildings.

PIR Duct vs. Fiberglass Duct

1. Thermal Insulation Performance

Fiberglass ducts generally come in two types: duct board systems made entirely of compressed fiberglass insulation, and sheet metal ducts lined or wrapped with fiberglass insulation. Both configurations use aluminum foil as a vapor barrier, but can suffer from insulation decay and leakage over time.

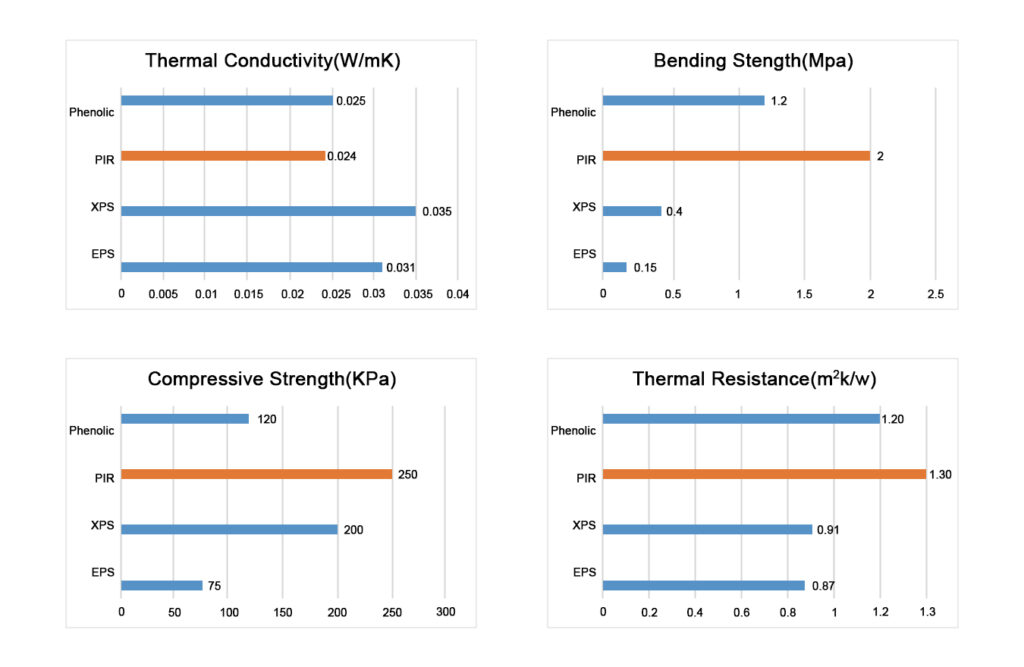

In contrast, a PIR Duct integrates rigid foam-core insulation panels with ultra-low thermal conductivity (0.016–0.036 W/m·K). These Pre Insulated Air Ducts can be up to 8 times more airtight than galvanized steel ducts. As a result, PIR Ducts can reduce heat loss to less than 2%, compared to approximately 15% for galvanized ducts and 8% for fiberglass systems.

2. Sound Attenuation

Central air units typically generate noise levels between 50–79 dB. Fiberglass duct systems often rely on additional silencers or mufflers to reduce this noise. In contrast, the foam core of Rigid Foam Ductwork used in PIR Ducts naturally absorbs sound, functioning as a built-in tubular silencer. This significantly reduces the need for external soundproofing.

3. Lightweight & Easy Installation

Weighing only 1.4 kg/m², PIR Duct panels are significantly lighter than fiberglass or galvanized duct systems. The lightweight nature of this Rigid Foam Ductwork makes it easier to transport and install—requiring fewer workers and minimal lifting equipment.

One hanger per 4 meters is typically enough, which simplifies construction. For large HVAC projects, the use of Pre Insulated Air Ducts like PIR Ducts enables faster deployment and reduces overall installation costs.

Thanks to their modular construction and lightweight panels, PIR Ducts can be installed far more quickly than conventional ductwork. Whereas traditional ductwork achieves an installation rate of 4–5 m²/day/person, Pre Insulated Air Ducts made from Rigid Foam Ductwork reach rates of 20–30 m²/day/person—cutting project time dramatically.

4. Service Life & Durability

Traditional fiberglass ducts degrade more quickly due to moisture absorption, physical damage, and insulation decay. Their lifespan is generally limited to 7–15 years. In contrast, a well-maintained PIR Duct can last over 20 years and is highly resistant to wear and tear.

Moreover, the aluminum foil surface of Pre Insulated Air Ducts serves as a Corrosion Resistant Duct barrier, protecting the system from rust, mold, and chemical exposure. This enhances durability and long-term performance, even in challenging environments.

5. Reduced Floor Height Requirements

Onsite insulation required by fiberglass systems increases overall duct volume and floor-to-ceiling height. PIR Ducts, being factory-finished Rigid Foam Ductwork, eliminate the need for additional insulation layers. This design allows for more compact installation and enables architects to optimize space—especially important in renovation or underground projects.

6. Improved Hygiene

Fiberglass ducts can trap dust and moisture, encouraging mold growth and fiber shedding. By contrast, PIR Ducts feature a Corrosion Resistant Duct exterior and closed-cell insulation that resists contamination. This makes them an ideal choice for hygienic applications such as hospitals, labs, and food facilities.
The smooth inner surface of the Pre Insulated Air Ducts also makes cleaning easier and reduces the accumulation of allergens and particles, improving indoor air quality.

7. Aesthetic Finish

PIR Duct systems can be finished in various colors and surface textures, providing a clean and modern appearance. This makes Rigid Foam Ductwork suitable for exposed applications in retail or office environments. Unlike fiberglass ducts that require inconsistent aluminum wrapping, PIR Ducts deliver both performance and aesthetics in one integrated product.

8. Wide Range of Applications

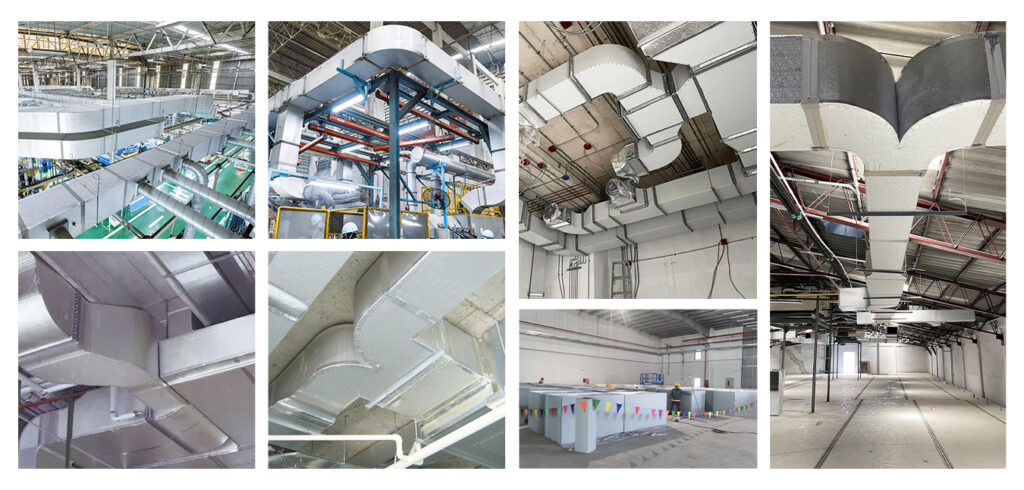

While fiberglass ductwork may be unsuitable for high-humidity or sterile settings, PIR Ducts are ideal for various building types—including hospitals, hotels, underground garages, shopping malls, and commercial centers.

Their structural strength, insulation performance, and corrosion-resistant properties make them a versatile and future-proof choice for modern HVAC design.

Conclusion: PIR Duct is the Smarter Long-Term Choice

When comparing across insulation, installation, durability, hygiene, and aesthetics, PIR Duct systems clearly outperform fiberglass alternatives. As a high-efficiency Pre Insulated Air Duct solution, Rigid Foam Ductwork offers energy savings, faster construction, and long-lasting reliability in any environment.

For building owners and HVAC professionals seeking a Corrosion Resistant Duct solution with minimal maintenance and superior efficiency, PIR Ducts provide unmatched value.
