Introduction to Different Facing Types of Pre-Insulated HVAC Duct Panels

Pre-insulated HVAC duct panels are widely used in modern air conditioning and ventilation duct systems as a high-performance solution combining thermal insulation, moisture resistance, and structural performance.

These panels are typically manufactured with rigid foam insulation cores laminated with different facing materials. Depending on project requirements, embossed aluminum foil, smooth aluminum foil, black aluminum foil, aluminum sheet, and pre-painted steel sheet facings can be selected to meet different demands for strength, corrosion resistance, appearance, and durability.

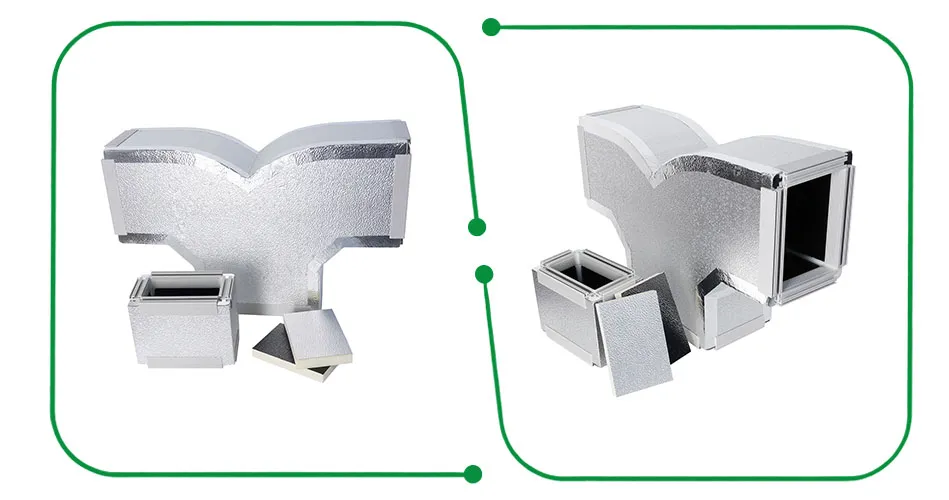

1.Double-Sided Embossed Aluminum Foil (standard thickness 60/80μm)

This is the most common and widely used facing type for general HVAC applications.

Features

• Lightweight and easy to install
• Stable thermal insulation performance
• Excellent moisture and vapor resistance
• Cost-effective solution

Applications

• Commercial buildings
• Office buildings
• Standard HVAC systems

2. Smooth Aluminum Foil Facing (Outer Embossed aluminum foil + Inner Smooth aluminum foil)

This structure typically combines embossed aluminum foil on the outside with smooth aluminum foil on the inside. The smooth inner surface is easier to clean and suitable for hygienic environments.

Features

• Smooth internal surface
• Easier cleaning and maintenance
• Reduced dust accumulation

Applications

• Food processing factories
• Hospitals
• Clean room projects

3. Black Aluminum Foil Facing

Black aluminum foil features an additional black coating on standard aluminum foil, making it suitable for projects requiring improved visual appearance and reduced reflection.

Features

• Modern appearance
• Reduced light reflection
• Good insulation and moisture resistance

Applications

• Exposed duct systems
• Cinemas, theaters, and concert halls
• High-end commercial spaces
• Modern interior projects

In the Australian market, black aluminum foil is commonly used for plenum box fabrication, with the black side facing inward.

4. Aluminum Sheet Composite Facing (Outer Aluminum Sheet + Inner Aluminum Foil)

This structure uses an outer aluminum sheet combined with an inner aluminum foil layer to improve overall strength and impact resistance.

Features

• High structural strength
• Excellent deformation resistance
• Suitable for demanding environments

Applications

• Outdoor duct systems
• Large HVAC projects
• Industrial ventilation systems

5. Pre-Painted Steel Sheet Composite Facing (Outer Galvanized Iron Sheet + Inner Aluminum Foil)

This composite structure offers higher mechanical strength and durability for heavy-duty applications.

Features

• High mechanical strength
• Good corrosion resistance
• Suitable for higher air pressure systems

Applications

• Industrial plants
• Large-scale HVAC systems
• Heavy-duty ventilation projects
• Outdoor exposure and high-traffic areas

Conclusion

Different facing types of pre-insulated HVAC duct panels provide different advantages in strength, durability, appearance, and environmental adaptability. Selecting the appropriate facing structure can significantly improve HVAC system performance, installation efficiency, and long-term reliability.
