Understanding Building Exterior Wall Insulation

In modern architecture, building energy efficiency is no longer a secondary consideration—it's a core design requirement. A significant portion of heat gain and loss in buildings occurs through external walls and their integrated components such as windows and doors. To reduce unwanted heat transfer and maintain indoor thermal comfort, building exterior wall insulation plays a vital role. Among various insulation strategies, thermal insulation boards have emerged as highly effective, durable, and adaptable solutions.

This article offers a comprehensive overview of insulation systems used in building exterior walls, with a strong emphasis on the selection and application of insulation boards, especially polyurethane foam insulation board and other rigid foam insulation board products.

1. Overview of Exterior Wall Insulation Systems

Heat loss through exterior walls has long been one of the major challenges in building thermal control. Four primary insulation methods are commonly employed:

1.1 Internal Insulation

This involves installing insulation materials, such as EPS boards, on the inner surface of the external wall. It is easy to install and largely unaffected by outdoor climate. However, it is prone to thermal bridging and limits interior renovation flexibility.

1.2 Cavity Wall Insulation

This method inserts insulation between two wall layers. While offering good protection for the insulation layer, it increases wall thickness and may compromise seismic resistance.

1.3 Self-Insulating Walls

These systems integrate thermal insulation into the wall material itself. Although structurally efficient, such walls often have higher thermal conductivity and struggle with cracking and thermal bridging.

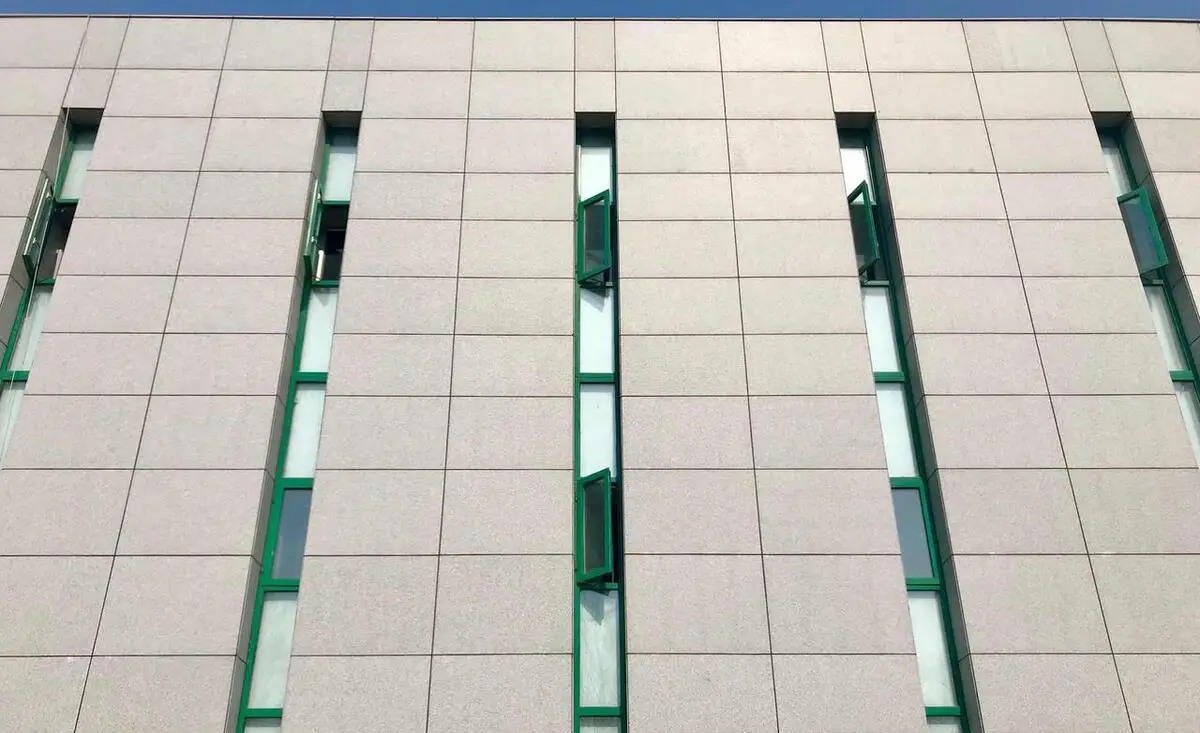

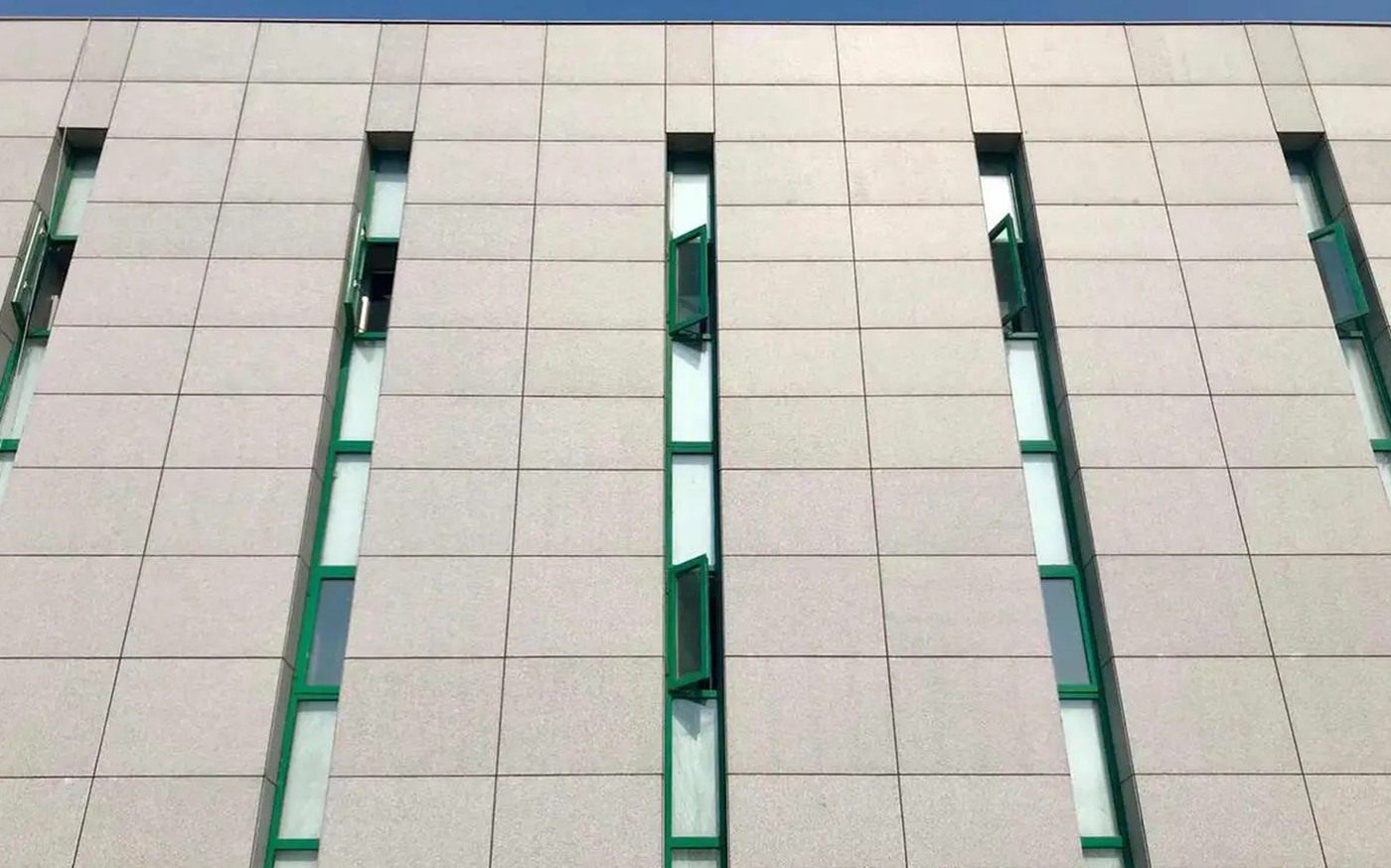

1.4 External Wall Insulation

By far the most widely used method today, external insulation systems apply a protective thermal layer on the building’s outer surface. This approach effectively minimizes thermal bridges, improves wall airtightness, and prevents condensation. It is also compatible with polyurethane foam insulation board and rigid foam insulation board solutions.

2. What Makes a Good Thermal Insulation Board?

Choosing the right thermal insulation board is essential to ensure system longevity, performance, and energy efficiency. High-performance insulation materials must meet several requirements:

• Low thermal conductivity to effectively resist heat flow
• Dimensional stability to withstand structural deformation
• Good adhesion with the base layer and finishing coats
• High impact resistance, especially important during HVAC and window installations
• Durability under environmental stress such as moisture, freeze-thaw cycles, and UV exposure
• Weather resistance, essential for all building exterior wall insulation materials

3. Common Types of Insulation Boards Used in Exterior Wall Applications

3.1 EPS Board (Expanded Polystyrene)

Made from polystyrene resin and pentane gas, EPS boards are lightweight, cost-effective, and offer decent insulation. However, their thermal performance is lower compared to other rigid insulation options.

3.2 XPS Board (Extruded Polystyrene)

Produced through an extrusion process, XPS boards feature a closed-cell structure that offers higher compressive strength and lower water absorption. Their thermal performance surpasses EPS due to reduced air permeability.

3.3 Polyurethane Foam Insulation Board (PU Board)

Known for its low thermal conductivity and outstanding insulation capacity, polyurethane foam insulation board allows for thinner walls without compromising energy performance. Despite its higher cost, PU board is widely used in premium applications for building exterior wall insulation due to its excellent airtightness and resistance to moisture.

3.4 Rock Wool Board

Manufactured from basalt or other volcanic rock, rock wool boards are non-combustible and offer good soundproofing properties. They are widely adopted in colder climates due to their fire resistance and durability.

4. Spray-Applied Insulation Systems

Aside from rigid boards, some modern insulation systems use on-site spray application techniques, particularly:

• Spray polyurethane foam (SPF), which bonds tightly to wall surfaces and minimizes air leakage
• Urea-formaldehyde foam, typically used for cavity wall applications. While it offers decent insulation, it requires specialized equipment and trained personnel for safe and effective application.

5. Key Considerations for Exterior Wall Insulation Design

When implementing thermal insulation board solutions, it is essential to evaluate:

• Local climate and weather patterns
• Wall orientation and solar exposure
• Compatibility with exterior finishing systems
• Expected building lifespan and maintenance cycles
• Structural load considerations

Choosing the right material isn’t just about insulation performance—it must also fit seamlessly into the architectural and structural framework of the building.

Conclusion: Choosing the Right Insulation Board for Energy-Efficient Buildings

Exterior wall insulation is central to modern sustainable architecture. Among the many solutions available, rigid foam insulation boards—especially polyurethane foam insulation board—stand out for their excellent thermal performance, structural adaptability, and long-term durability.

By selecting high-quality thermal insulation board products, construction teams can ensure optimal thermal comfort, reduced HVAC load, and significantly lower energy consumption.
