Application of PU Insulation Boards in Equipment

In the HVAC and industrial equipment insulation field, PU Insulation Board (Polyurethane Insulation Board) has become one of the mainstream solutions for equipment enclosure insulation due to its extremely low thermal conductivity, closed-cell structure, and excellent long-term durability.

Whether used in air handling units, ventilation boxes, refrigeration equipment, AHU cabinets, fan coil housings, or duct enclosures, PU panels provide stable, efficient, and long-lasting thermal protection.

This article provides a practical reference for contractors and equipment manufacturers on using PU insulation boards for equipment insulation.

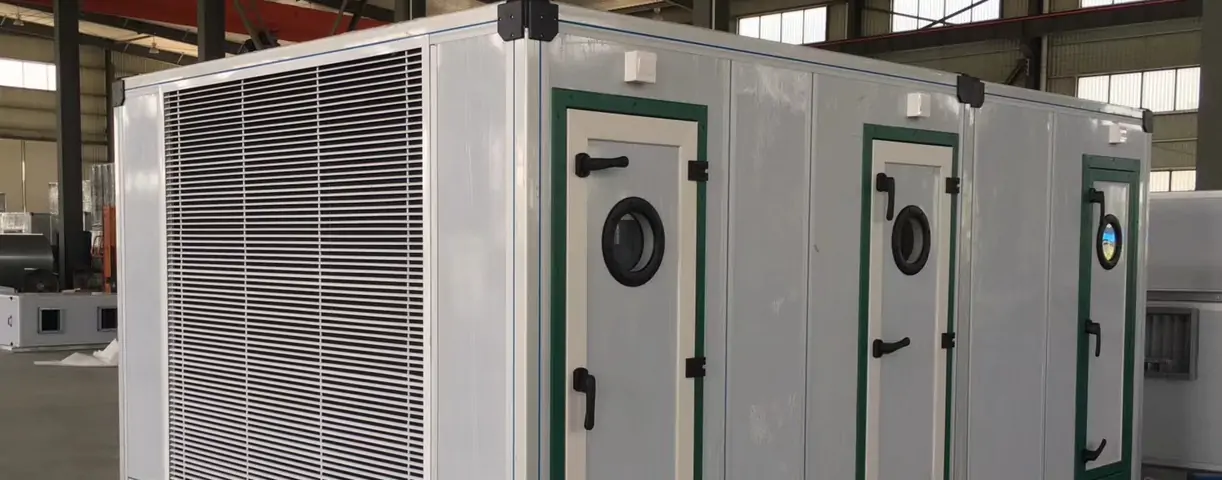

I. Why Do Equipment Systems Require Insulation?

In modern HVAC equipment, heat loss and cooling loss can lead to:

• Increased operational energy consumption
• Lower equipment efficiency
• Condensation and moisture problems on equipment surfaces
• Higher noise levels
• Shortened equipment lifespan

Therefore, whether for refrigeration plant equipment, rooftop units, commercial HVAC cabinets, or fan boxes, Equipment Thermal Insulation has become an essential part of energy efficiency and system safety.

II. Key Advantages of PU Insulation Boards in Equipment Applications

1. Ultra-Low Thermal Conductivity for Significant Energy Savings

With a thermal conductivity ≤ 0.024 W/m·K, PU boards deliver superior insulation performance, reducing both heating and cooling losses in equipment.
Suitable for:

• AHU enclosures
• VRF outdoor unit housings
• Ventilation cabinets
• Chilled water equipment panels

2. Closed-Cell Structure for Excellent Moisture and Condensation Resistance

PU foam is a classic Closed-Cell Structure, featuring extremely low water absorption, preventing equipment surfaces from condensation, moisture buildup, and corrosion.
Ideal for:

• Chillers
• High-humidity equipment rooms
• Cooling equipment housings

3. Lightweight Yet Strong — Ideal for Large Equipment Surfaces

PU rigid foam panels offer outstanding compressive and flexural strength, making them suitable for installation on large flat surfaces without deformation or collapse.
Used for:

• Air Handling Units (AHU)
• Fan Coil Unit housings
• Supply & return air boxes

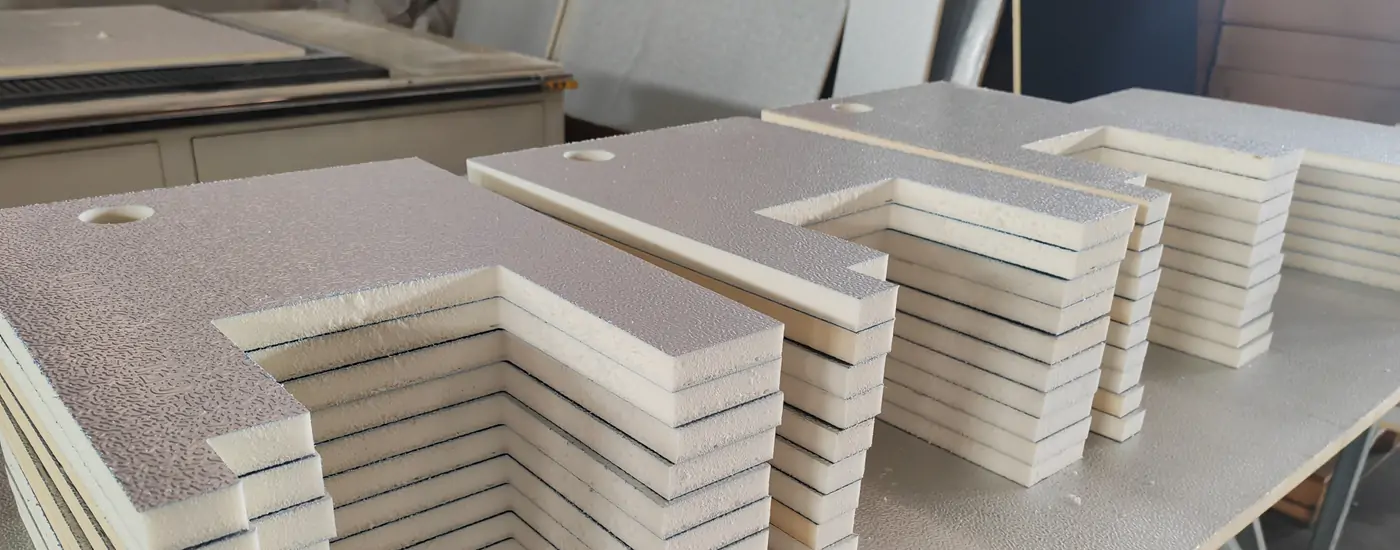

4. Easy Cutting & Processing — Fits Various Equipment Shapes

Compared with mineral wool or elastomeric insulation, PU boards provide higher dimensional stability:

• Easy to cut and bond
• Aluminum foil facings improve durability
• Suitable for custom-shaped equipment surfaces
• This is one of the main reasons why many OEM manufacturers prefer PU insulation.

5. Multiple Facing Options for Different Environments

GFI PU Insulation Board can be supplied with:

• Aluminum foil facing
• Glass cloth facing
• Composite foil facing

Aluminum foil is the most common option due to its corrosion resistance, moisture barrier performance, and anti-mold properties.

III. Typical Applications of PU Boards in Equipment Insulation

✓ AHU (Air Handling Unit) Thermal Insulation

Reduces thermal bridging, increases supply air efficiency, and lowers energy consumption.

✓ Fan Box & Fan Coil Housing Insulation

Prevents condensation and reduces noise and energy loss.

✓ Chiller & Refrigeration Unit Enclosures

Enhances cooling efficiency and reduces load.

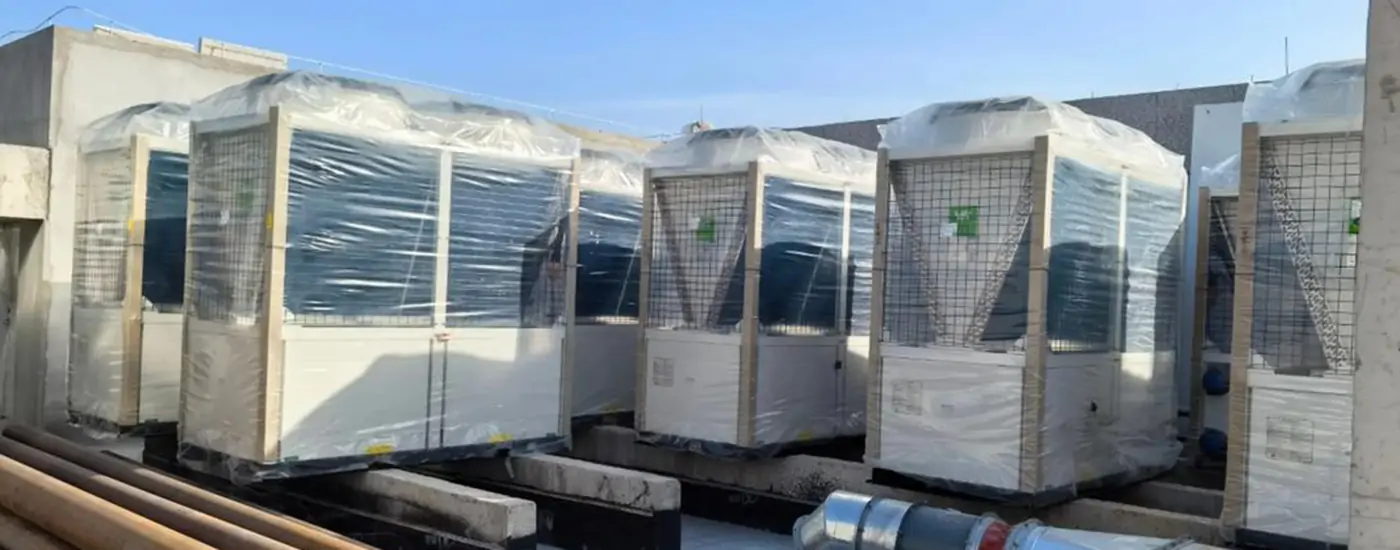

✓ Rooftop Units & Commercial AC Equipment

Lightweight structure is ideal for rooftop installations.

✓ Industrial Equipment Thermal Enclosures

Suitable for dryers, heat recovery units, and other equipment requiring long-term insulation.

IV. Why More Equipment Manufacturers Choose GFI PU Insulation Board

✔ Stable performance suitable for 24/7 operating environments

Weather-resistant, moisture-resistant, and pressure-resistant — ideal for mechanical rooms and outdoor equipment.

✔ Lightweight structure reduces equipment weight

Beneficial for AHU, FCU, RTU and other equipment requiring weight reduction and structural optimization.

✔ High material consistency, ideal for OEM mass production

Industrial-scale production ensures stable quality and precise specifications, supporting standardization in equipment manufacturing.

✔ Customizable facings for different applications

Green foil, silver foil, glass cloth, and other options are available upon request.

V. Conclusion

With its high insulation efficiency, moisture resistance, structural stability, and ease of processing, polyurethane insulation board has become a preferred material for HVAC and industrial equipment thermal enclosure systems.

If you are looking for a reliable equipment insulation solution, GFI HVAC PU Insulation Board provides long-lasting, energy-efficient, and durable insulation for AHUs, fan boxes, chillers, ventilation cabinets, and more.

👉 Contact GFI today for specifications, pricing, and samples of PU insulation boards for equipment applications.
